Metal Detecting Separators - SMS

DownloadDownload InquiryInquiry

    • panel

      Working status display

    • cylinder

      When it detects the metal
      objects, the cylinder will start and close the shut-off plate to remove the metal mixture.

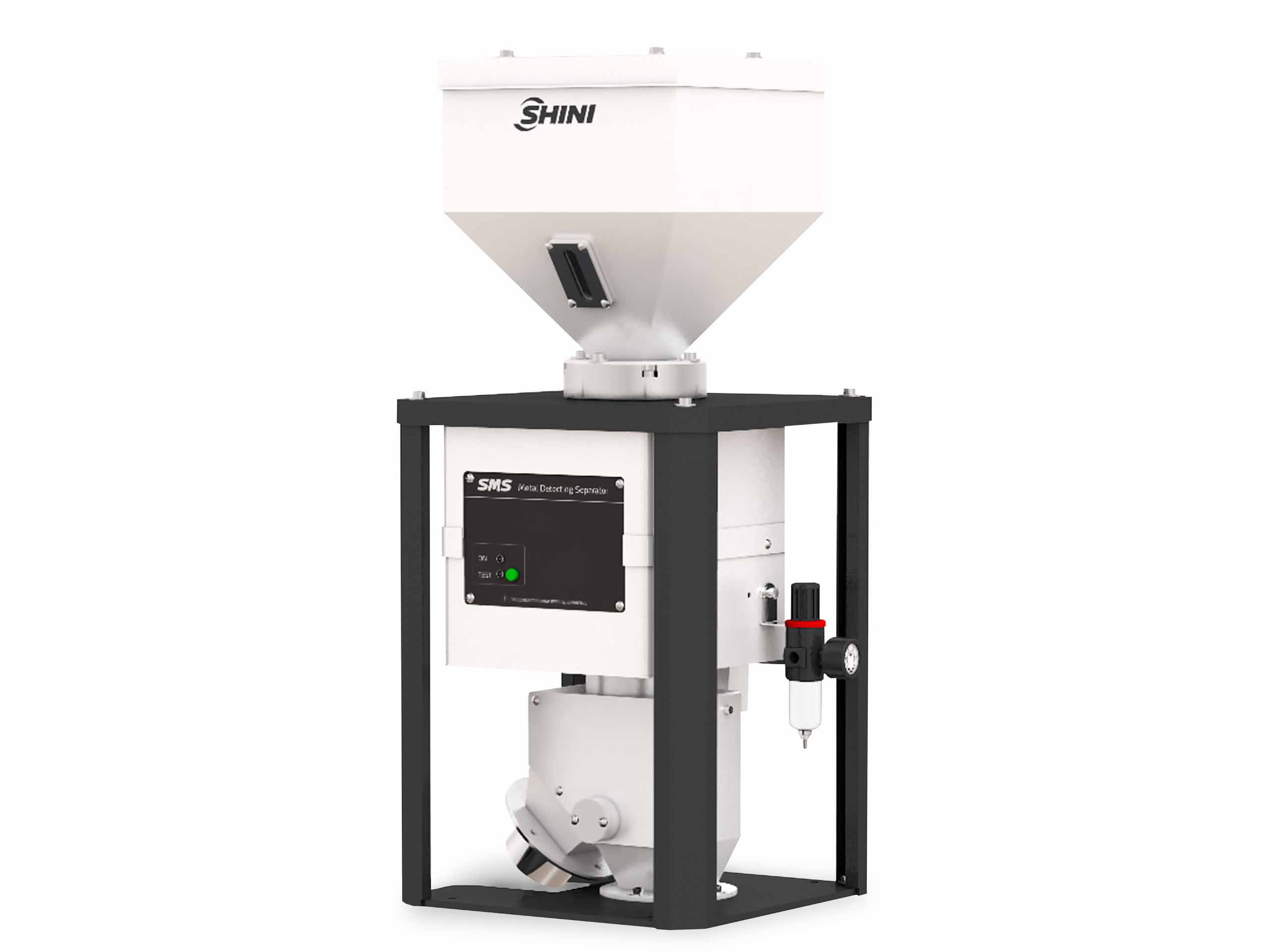

    SMS series metal detecting separators are highly sensitive and accurate in detecting and separating metal grains, such as steel, iron, copper, aluminum, lead, tin, etc. It can be installed directly on injection molding machine or (extruders) hoppers to protect the screw of machine from the damage caused by hard metals. When it installed on the injection molding machine or on hopper of the extruder, material level sensor should be mounted on the hopper to prevent material blockage which affects machine testing.

    Features

    • Fast separating all the metals from the material.
    • The minimum detectable diameter of the metals can be as small as 0.5mm.
    • Compact design, easy to install and simple to operate.
    • Standard equipped with a 12L/3.2gal hopper.
    • German metal detector.
