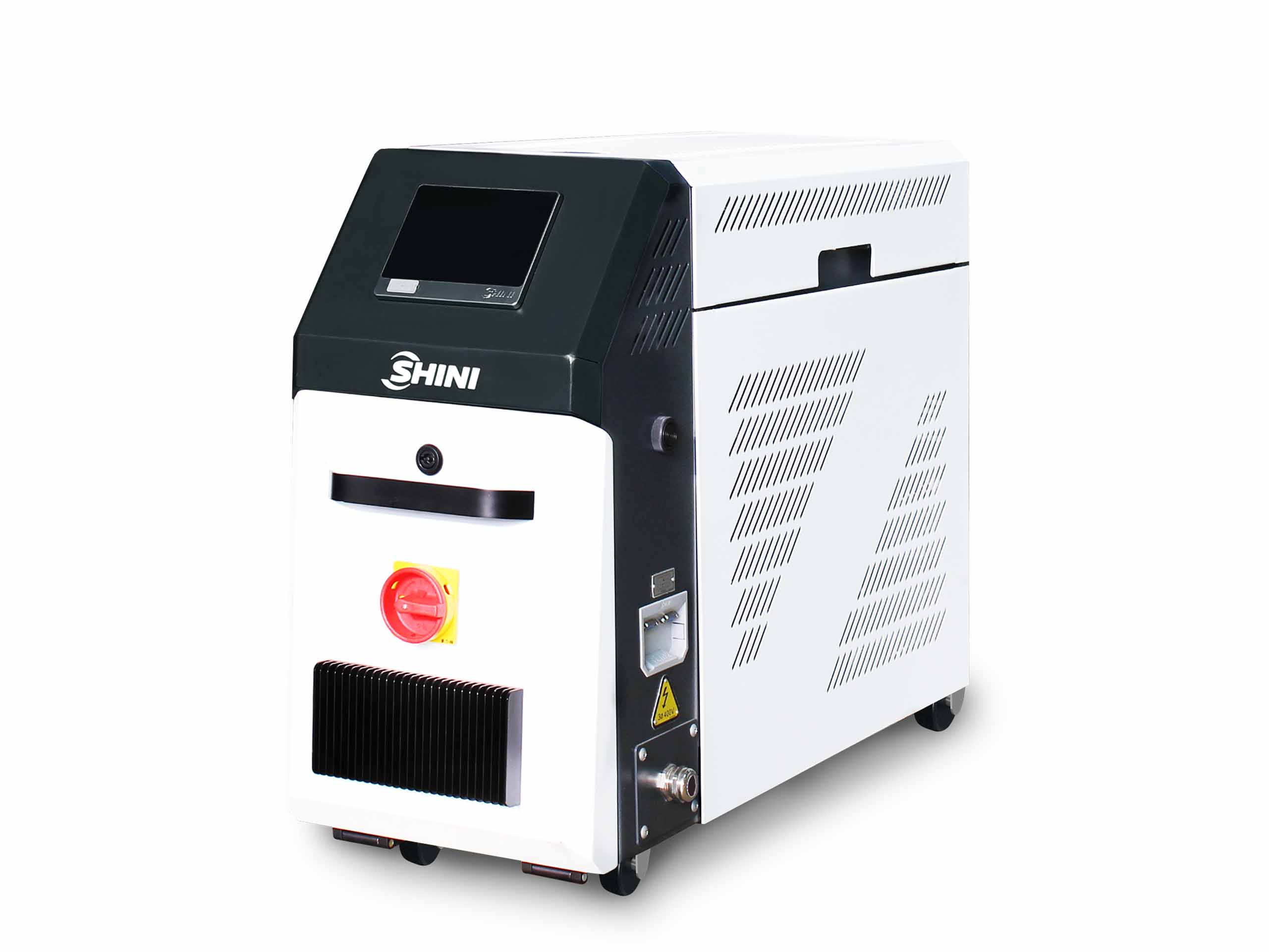

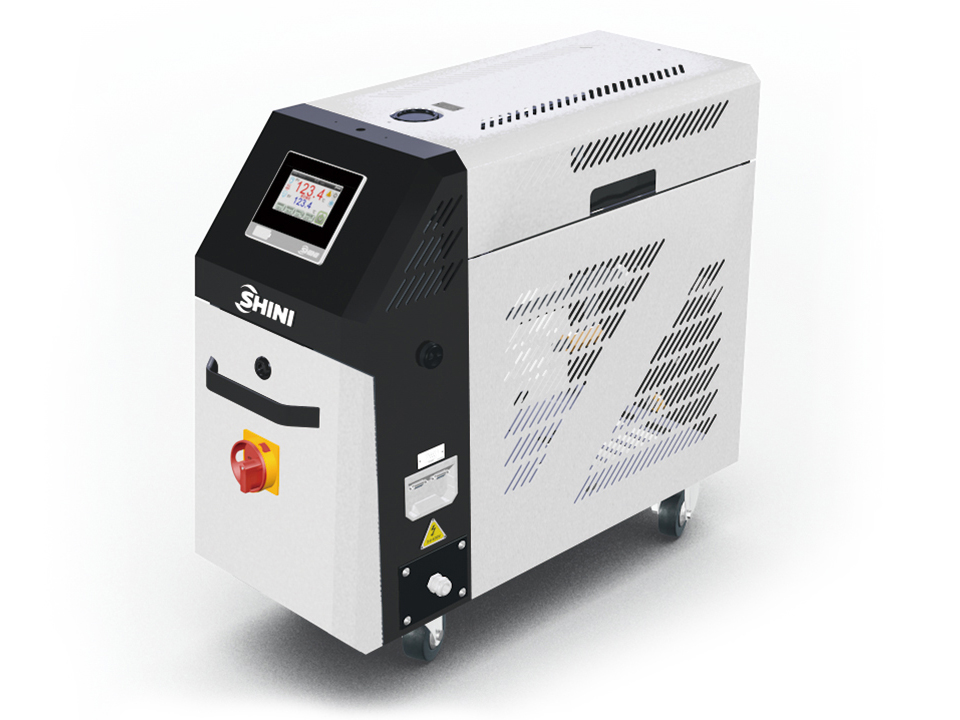

High Temperature Water Heater STM-PW

DownloadDownload InquiryInquiry

    • Control Panel

      Adopt LCD control panel to make it easy for users to input temp.parameters, and integrates the P.I.D. temp. control system to ensure precise temp. control.

    • Safety Release Valve

      The safety release valve protects the internal system

    • Heating tank

      Stainless steel heating parts, with built-in pipe heater

    • Pump

      Adopt high-efficient water cycle magnetic pump, which can meet the demands of
      temperature control for precise moulds and mould loop with minor diameter to
      achieve precise temperature control and high efficient heat exchange.

    • Plate Heat Exchanger

      For parts cooled by the machine, the indirect cooling features high heat exchange efficiency

    • Solenoid Valve For Cooling

      Cooling solenoid valve will be activated during cooling process, process water cools down after passing through plate heat exchanger

    TM-PW series high temp. water heaters are mainly used for mold heating and mold temperature maintaining. Besides, it is also applicable to fields with other similar demands.

    Compared with the STM-W water heater, this series is able to meet wider production demands under higher heating temperature (180℃) condition. Besides, there are many options and accessories for this series of machine that can meet different production demands.

    Features

    • For standard STM-PW, the maximum heating temperature is 180℃/356℉.
    • 4.3" Touch screen controller with easy to use HMI and clean display.
    • Adopt SSR solid-state relay controller.
    • Adopt plate heat exchanger for direct cooling and accurate temperature control, and the low water viscosity makes quick heat exchange.
    • P.I.D controller with 4.3" LCD with a user-friendly interface. The multi-stage controller can maintain stable mould temperature with a precision of +/- 0.5℃/0.9oF.
    • In build weekly timer with℃/oF. unit conversion.
    • In build multiple safety with display and alarm buzzer, such as reverse phase, pump overload, overheat, and low water pressure.
    • Built-in magnetic pump without seal.
    • RS485 communication interface achieves centralized monitoring with the host.
    • Equipped with water level probe and high-pressure plunger pump that could accurately detect the water level, and refill during high-pressure as to avoid empty water system.
