Dual-purpose Water/Oil Heaters - STM-W/O

DownloadDownload InquiryInquiry

    • control panel

      Adopt LCD control panel to make it easy for users to input temp.parameters, and integrates the P.I.D. temp. control system to ensure precise temp. control.

    • water pump

      Adopt turbo pump to
      provide power source for
      water circulation between the mould and machine.

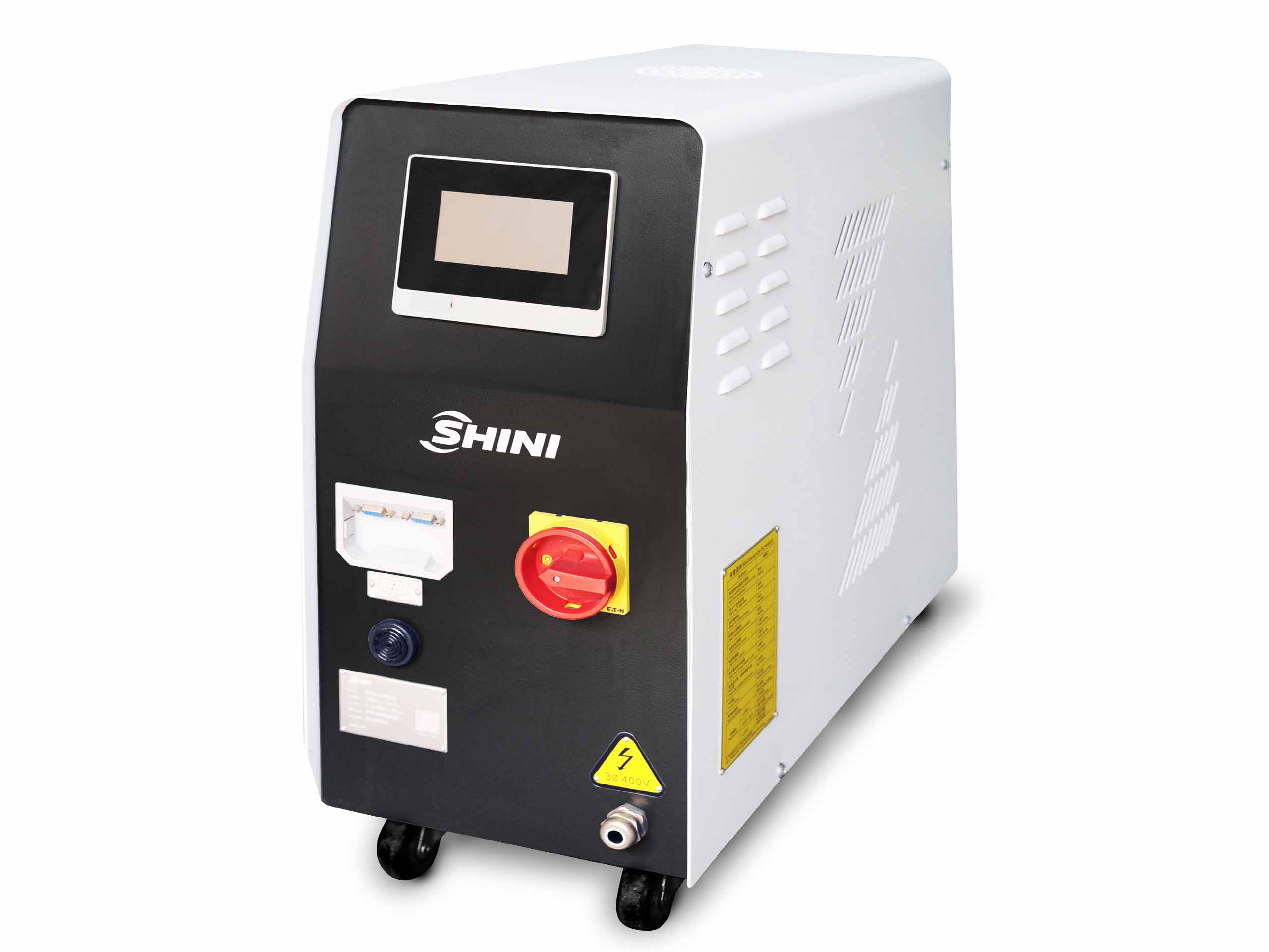

    STM-W/O series dual-purpose heaters are used to heat up the mould and maintain temperature, and also they can be used in other similar applications. This series of machines can use oil or water as heat transfer media according to different production processes, as to adapt to different production conditions. Besides, this series of models have multiple options and accessories to meet different production demands.

    Features

    • Adopt water or oil as heating medium, the maximum temperature can reach: water 95℃/203℉ and oil is 160℃/320℉.
    • Controller adopts 3.2" LCD for easy operation.
    • In build weekly timer with℃/℉ unit conversion.
    • P.I.D controller with 3.2" LCD with a user-friendly interface.
    • The multi-stage controller can maintain stable mould temperature with a precision of +/- 0.5℃/0.9℉.
    • Adopt high efficiency, vertical dual-purpose of water/oil high temperature.
    • In build multiple safety with display and alarm buzzer, such as reverse phase, pump overload, overheat, and low oil level alarm.
    • Equipped with pump reversion evacuation, automatic water supplying and negative pressure operation.
    • Modbus RTU data communication via RS485.
