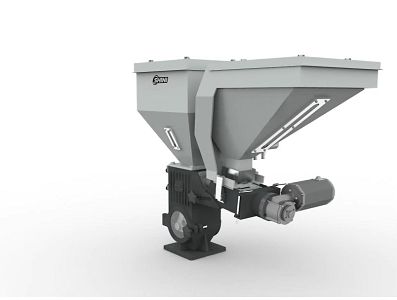

Gravimetrisches Dosiergerät „SGD“
BACK
Kontakt

  • E-Catalog
    DOWNLOAD
  • Einführung
    Die SGD  Dosiergeräte sind zur auto- proportionalen Mischung von Neumaterial, Mahlgut, Masterbatch oder Additiven geeignet. Der Motor mit der Getriebeübersetzung von 38:1 ist mit einer Dosierschnecke verbunden, die einen 12, 16,20 oder 30mm Durchmesser hat. Zweifach Dosiergeräte können nach Kundenwunsch auch aus zwei Einfach Dosiergeräten zusammengestellt werden.

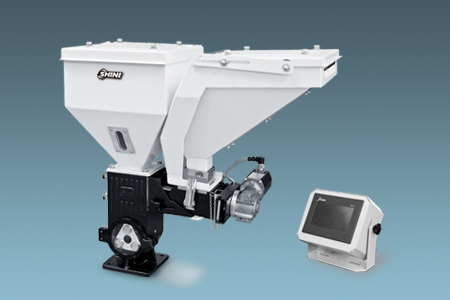

  • Gravimetrisches Dosiergerät „SGD“
  • Funktionen
    • Dosing screws are chrome plated for durability.

    • Unit is comprised of standard modules for ease of cleaning, disassembly and interchangeability.

    • Three-tube hopper magnet is equipped at the base to absorb metal impurities so to prevent screw of molding machine from damage.

    • Mixer is standard equipment for double color doser to make the material evenly mixed, while also an option for single color doser.

    • Main material hopper is standard equipment for double color doser. It is optional for single color doser.

    • External signals can be directly interfaced with control box.

    • The current operation mode can be recorded, unaffected by power failure so operation would be returned to normal when power is on.

    • Forced material cleaning is convenient to replace masterbatch.

    • SGD is able to automatically monitor the addition of masterbatch and additives. Also it can fulfill automatic calibration when bulk density of material varies.

    • Ethernet communication is available to transmit data, record and store the dosage of regrinds and masterbatch for future use.

    • The function of aberration compensation is able to adjust the proportion of masterbatch or additives based on regrinds amount.

    • Manipulate dosing process via loss-in-weight technology, satisfying the high requirement of production precision.

    • Up to 100 groups of recipes can be saved.

    • Suitable for extrusion or injection molding modes.

    • It is able to detect the blockage and overload of masterbatch and stop machine and sound alarms accordingly.

    • Machine halts and sounds alarm when motor faults.

    • Venturi Loaders are optional.

    • For working with SHD-100 or SHD-160U and models above, heavy base should be selected.
